Results: Co-blending Phosphate Inhibitors for Sustainable, Low-Cost Corrosion Control
Intro
As professionals working within the coatings industry, we are all acutely aware of the issues that corrosion poses and want to provide our customers and end-users with the best quality products to tackle this $2.2trillion global issue. (NACE, 2016) Anti-corrosion coatings have become a necessity for industries to safeguard the huge investments they make in terms of money, property and safety of workers. Whether coating to protect pipelines, aeroplanes or computer gadgets – customers are united in their battle against corrosion!
Historically, some of the most effective corrosion inhibitors have been based on chromium. However, these chemistries are currently being phased out globally – leaving a gap in the market for a highly effective inhibitor that is non-toxic and non-carcinogenic.
Following strong R&D efforts and lengthy extended testing, many coatings companies have turned to phosphate-based systems. This article highlights a step-change alternative that can save 10-30% on the cost of anti-corrosives as well as offering customers more sustainable coatings that require no hazard warning label.
Why phosphates are popular:
Currently, 45% of the corrosion inhibitor market is currently dominated by phosphates.
Industry testing and academic research show that adding zinc phosphate can inhibit the anode process of metal corrosion and consequently prevent the horizontal diffusion of the corrosive medium into the coating/metal interface and slow down the disbonding of the coating. (Hongxia Wan, 2017)
Additionally, phosphates don’t pose the same health and environmental hazards as chromates, however, they do still present environmental issues through leaching. In its form as an inhibitor – it is classed as a Category 1 Environmental Hazard. Within the coatings system, at loadings of 2.5% and above, the paint will be classed as a Category 2 Environmental Hazard so will still require hazard labelling. (United Nations, 2021)
Why phosphate “co-blends” are better:
Innovative and trusted technology working together
Figure 1
Figure 2
Figure 3
[Figures 1 -3: depicts the protection mechanism of a co-blended primer coatings following detection of corrosive ions]
Zinc phosphate salts on their own are not initially very effective due mainly to their low solubility. As a result, in a corrosive environment, significant amounts of time must pass before there are sufficient concentrations of phosphate anions to react with the metal surface cations to form an anti-corrosive precipitative layer. This leads to a time delay where corrosion can proceed unimpeded. (M.Cohen, 2022)
Intelli-ion® uses ‘smart release’ technology which senses and reacts to corrosive ions very quickly – buffering the time delay seen with phosphate inhibitors. It sequesters corrosive ions which triggers the release of the ‘active ingredient’ to form a very fast inhibitive layer at the site of corrosion. Phosphate inhibitors then fill the gaps to form a strong polymeric layer with the metal ions and metal surface. Intelli-ion® provides the initial protection backed up by the zinc phosphate precipitate layer to provide an optimised co-blend anti-corrosion solution.
Additionally, like highly effective chromates, Intelli-ion® is both an anodic and cathodic inhibitor. This ensures that the technology can reduce the rate of metal dissolution at the anode and simultaneously decreases the rate of reduction reaction (both oxygen reduction and water reduction), via blocking the interfacial transfer of electrons.
Removal of toxic warning labels from packaging
Sustainability is a key market driver within the coatings industry. In the past, mandatory regulation was the most important factor, but now, we are seeing a fundamental shift in the societal demand with respect to sustainability and responsible business behaviour. (Cynthia Challener, 2018) In short, customers are looking for products that are environmentally sound.
Co-blending existing phosphate-based anticorrosion systems with Intelli-ion® at loadings less than 2.5% by weight in a paint moves a coating from Environmental Hazard Classification 2 (H411) to Classification Category 3 (H412). Category 3 presents a lower risk to aquatic life so no warning label is required on the paint packaging. In turn, this has storage, transportation, and disposal benefits – not to mention the environmental advantages!
Anticorrosive cost savings
Due to the high efficacy and lower loadings – ‘smart’ co-blend formulas with other phosphate containing metal salts can deliver anticorrosive cost savings of 10-30% per litre of paint.
In addition, Intelli-ion® also has a significantly lower Specific Gravity than ZnP reducing the need for reformulation changes when lower weights of anti-corrosives are incorporated.
Evidence of Intelli-ion® & phosphate compatibility
Independent academic research at Swansea University, Wales
Figure 4
Figure 5
[Figures 4 and 5 demonstrate Dr Phil Ansell’s independent research aimed at understanding the relationship between Intelli-ion® and ZnP]
The above research was conducted by Dr Phil Ansell of SPECIFIC Innovation & Knowledge Centre, Swansea University. The independent research aimed to understand the relationship and optimal loadings between Intelli-ion® and zinc phosphate (ZnP) corrosion inhibitor co-blends. Various volume combinations (PVF – pigment volume fractions) of Intelli-ion® and ZnP were applied to a steel substrate, and timelapse photography was used to measure the combined inhibitor effect on the rate of cathodic disbondment (Kdel) over 24 hours.

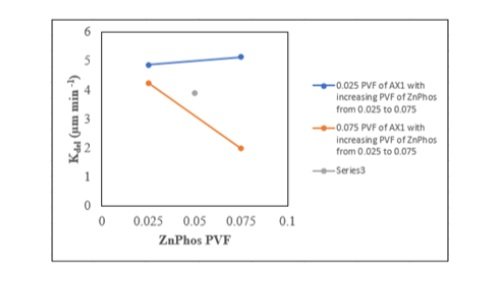

In Figure 1, the blue line represents the rate of coating delamination when Intelli-ion® is held at a low PVF (0.025) and the PVF of zinc phosphate is increased from 0.025 to 0.075. Coating delamination increased with higher concentrations of ZnP. Conversely, the orange line shows that when the PVF Intelli-ion® is kept high and constant (0.75 PVF) and the amount of ZnP varies from low (0.025) to high (0.075)– disbondment dramatically decreases. This demonstrates the synergistic effect of the co-blend is optimised when there is a higher loading of Intelli-ion® within the coating system. Figure 2 shows the best performing co-blend combination where Intelli-ion® and ZnP are both at higher levels.
Industry-standard salt-spray testing
[Figures 6 and 7 demonstrate industry standard salt spray testing (ASTM B117) of phosphate-based systems (left) vs, Intelli-ion® (right)]
Figure 6
Figure 7
Industry standard accelerated weathering tests with on-the-market phosphate-based coatings vs. Intelli-ion®- containing primers also demonstrate comparable or better performance.
The above mild steel samples were coated with an alkyd primer (+/- topcoat) and then scribed using an Elcometer 1638 DIN scratching tool fitted with a 1 mm cutter. The samples were then placed in a salt spray chamber (at 45° angle) and run-in accordance with ASTM B117 continuous salt spray fog testing. Following 500 hours, the samples were rinsed using distilled water and dried using lint free cloth before being analysed.
The inhibitor loading level was optimised for cost and environmental benefits - at a 3:2 ratio – to lower the phosphate content to below 2.5%. This co-blend approach removes the environmental warning labels from packaging, however, the imagery clearly demonstrates that Intelli-ion® offers has a synergistic relationship in performance with both zinc phosphate and polyphosphates too.
To conclude:
In 2021, the top 15 paints and coatings companies accounted for a total market share of approximately 58.52% (AKI Research, 2022). In an industry dominated by so few – its increasingly important to differentiate your coatings and offer customers quality at a cost they can afford.
Co-blending Intelli-ion® anti-corrosives with phosphate-based systems offers a step-change alternative that enhances current coating systems without changes to the manufacturing process. At an optimised 3:2 ratio, coatings manufacturers can remove hazard warning labels from their packaging, reduce their anticorrosion costs – all whilst benefiting from comparable or better performance.
